SHOPS
A)
Engg work shop
1. Fabrication Shop
@ 300amp APS meek inverter type Tig welding m/c

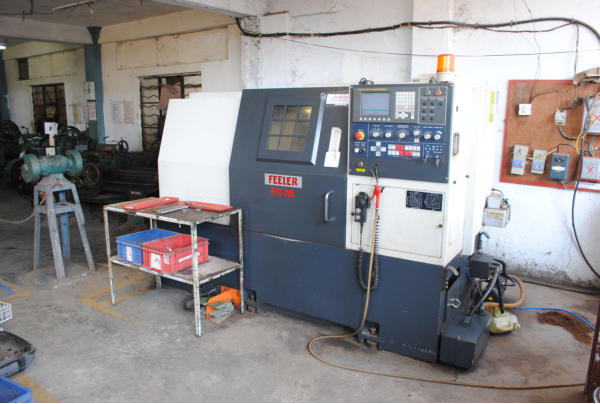

2. CNC machine
Filler meek 500mm length, 300 Mm O.D. 20 H.P. main Motor
3. Machine Shop
SN
Type of Machine
Make
Capacity
Bed
Job length
Bed gap
Spindale bore
Center height
1 Lath (center) with Norton gear
Victory
Heavy duty 900mm
200* 400
80
250ab900
2 Lath (center) with Norton gear
Accurate
Heavy duty
900mm
200* 400
52
250ab900
3 Lath (center) with Norton gear
High tech.
Medium duty
900mm
200* 400
52
250ab900
4 Lath (center) with Norton gear
Turner
Light duty
450
52
250
5 Lath (capstan)
Capstan
Heavy duty
450
200
52
200

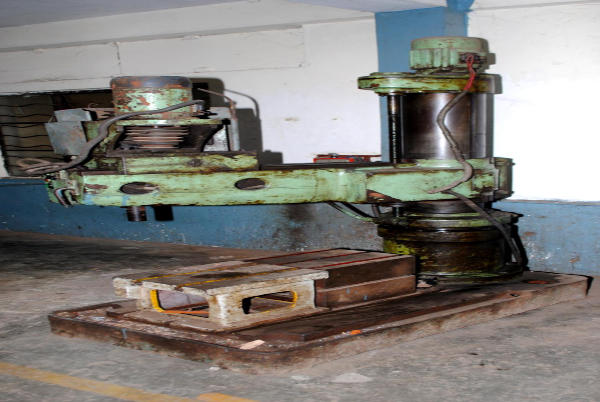

6 Radial drill m/c (40mm)
Universal
Heavy duty
38mm
1 m Arm
7 Bench Grinder (1 hp)
3000rpm
8 Flattening (belt)1 hp
Med. duty
9 Magnetic drill 50mm
Light duty
Q.50mm
75mm.Dip
10 Tig Welding (Inverter Type)-
11 Orgon Welding for SS.
A.P.S.
300 Amps.
B)

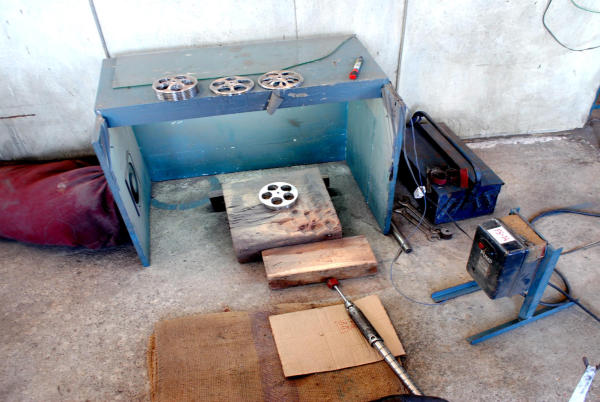

Buffing shop
SN
Name of machine
Make
No. of m/c
Capacity
Electrical capacity
1
Flexible shaft buffing fix 12000 rpm m/c
Sunhar
11.Nos.
25 mm mob. wheel
1. Hp.
2
Flexible shaft buffing 5000 to 12000 rpm
Sunhar
2.No.
25 mm mob. wheel
1. Hp.
3
Flexible shaft buffing fix 8000 rpm m/c
Sunhar
2.No
25 mm mob. wheel
1. Hp.
4
Buffing fix spindle medium
Vijay
2.Nos
10” buffing wheel
3. Hp.
5
Buffing fix spindle small.
Vijay
1.No.
6” buffing wheel
1. Hp.
6
Belt polishing
Elmak
1 No.
50 X 2000
3. Hp.
7
ID polishing
Precise
2 No.
50 mm
3. Hp

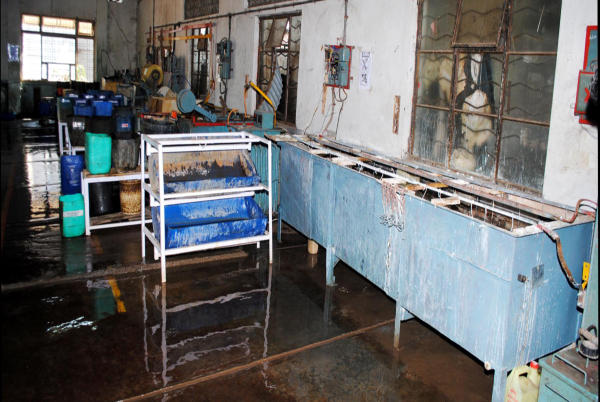

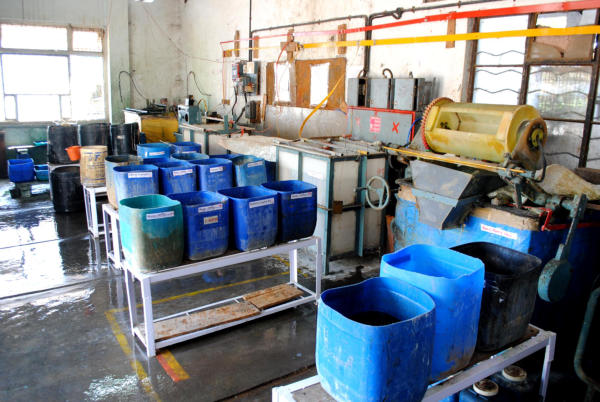

C) Plating shop
SN
Name of machine
Make
Capacity
Electrical capacity
Size Chemical Barrel V-Amp
1
Ni-plating barrel
Sukumar
450 lit
15 Kg
10v-100A
1 hp.
2
Ni-filter
1 hp.
3
Acid zinc barrel (1)
Sukumar
1*1mtr
500 lit
50 Kg
10v-200A
1 hp
4
Tin Plating barrel (2)
Sukumar
400 lit
15 Kg
10v-200A
1 hp
5
Acid zinc-filter
Sukumar
6
Zink barrel (3)
Sukumar
7
E. P. Tank
Santosh Engg.
600 lit
1*1mtr
12V-500A
7 hp
8
Tumbling
Sukumar
15 Kg
1 hp
9
Degreasing system
Salunke
200 lit
10
Kerosene system
20 lit
11
Chrome plating
150 lit
500 A
12
Acid pickling
500 lit
13
Copper plating
300 lit
